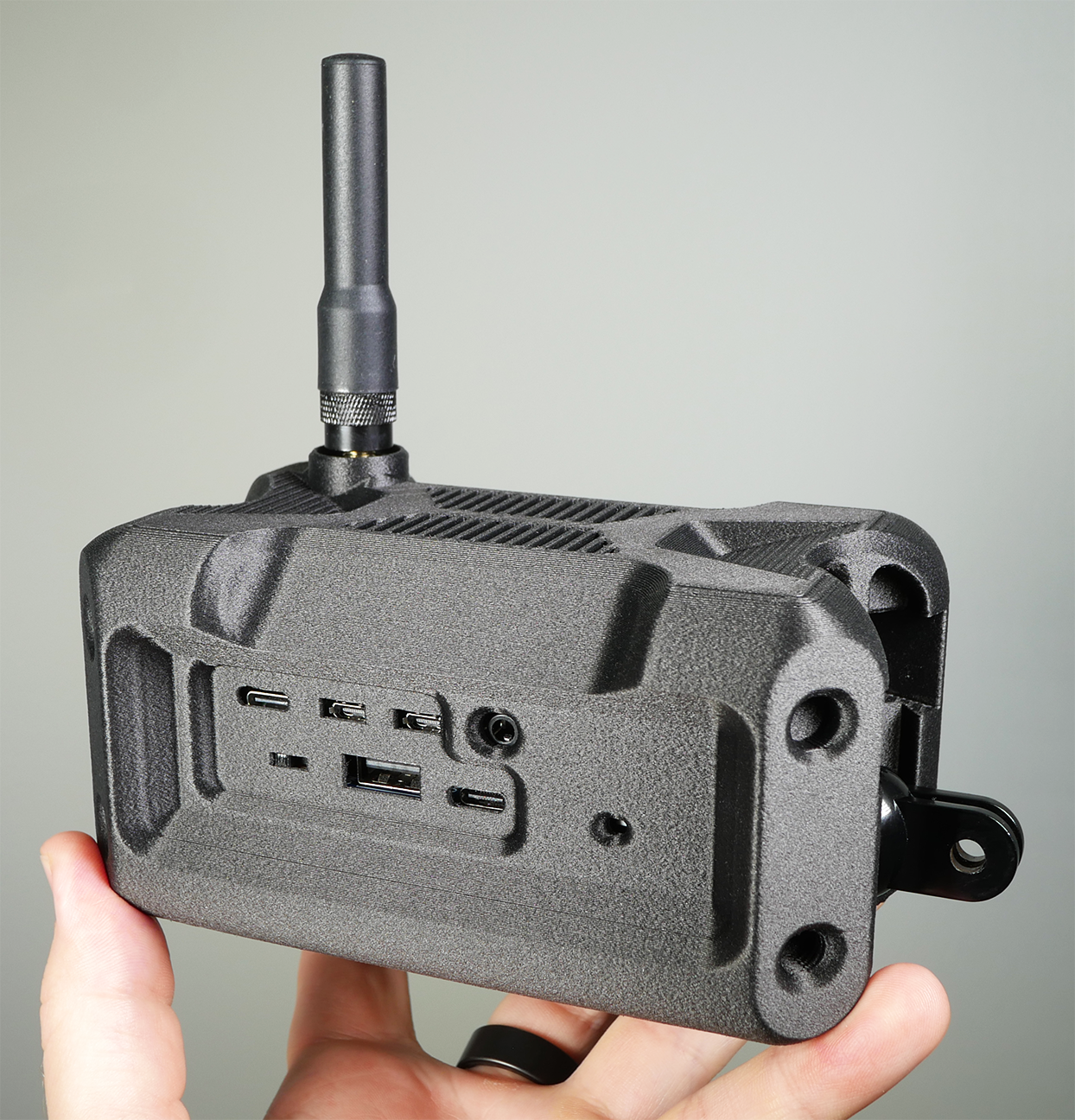

Haven – Prebuilt Node

A fully assembled and field-validated Haven system.

This is the complete Haven architecture — built, flashed, configured, and tested. Just a working MANET style IP mesh radio.

Hardware Specifications

Compute

• Raspberry Pi 5 – 16GB RAM


Radio

• Wi-Fi HaLow (802.11ah) long-range module
• External SMA antenna interface
• Tuned antenna included

Onboard Wireless

• Dual-band Wi-Fi (2.4 GHz / 5 GHz)
• Ethernet (10/100/1000 Mbps)

Enclosure

• Hardened field enclosure designed by MOROSX

Battery

• Total of 10,000 mah capacity - Molicel 21700 batteries (2)

Software & Networking Stack

Operating System

• OpenMANET (1.6.2)

Mesh & Routing

• 802.11s mesh networking
• BATMAN-adv (Layer 2 routing)
• Reticulum (1.1.3)

Radio & Layer Support

• 802.11ah (Wi-Fi HaLow) MorseMicro MM6108 chip
• Configurable 2.4-5 GHz onboard Wi-Fi

Limited Supply

These nodes are built in extremely small batches.

Availability is limited due to component sourcing, assembly time, and validation testing. When sold out, additional units may not be immediately available.

Interoperability

The Haven – Prebuilt Node supports standard 802.11ah (Wi-Fi HaLow) operation.

It is capable of communicating with other Wi-Fi HaLow–enabled devices operating on compatible frequencies and configurations.

Prefer to Build It Yourself?

Everything in this unit — hardware selection, firmware, wiring, configuration, and deployment — is fully documented in the Haven implementation guide.

If you’re comfortable assembling hardware and following detailed instructions, you can build the same architecture yourself for significantly less.

The complete guide is $97.

Build it yourself. Own the stack.
